MS²Vertical 9020 LC-MSMS

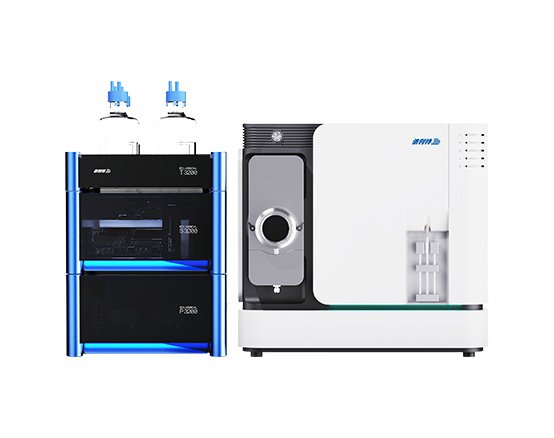

The EClassical 3200L UHPLC system was coupled with the MS² Vertical 9020 triple quadrupole mass spectrometer in the Elite MS² Vertical 9020 LC-MS/MS system. This configuration fully leverages the advantages of the EClassical 3200L HPLC system, including its intelligent design, ultra-high performance, "rapid injection," and long-term stable and precise operation. Simultaneously, it integrates high sensitivity, high stability and high cost-effectiveness, with the advantages of strong quantitative ability and multiple reaction modes of Elite MS² Vertical 9020. This combination achieves rapid, sensitive, convenient, and stable long-term LC-MS/MS testing and operation. The system can be widely used in the fields of medical research, biopharmaceuticals, food safety and environmental testing.

EN_LCMS9020_202508-MS2-Vertical-9020.pdf

Specifications

Liquid Chromatography Section (EClassical 3200L) ensures excellent separation and injection performance: the column oven provides temperature control with an accuracy of 0.1°C and supports multiple temperature control modes; the autosampler features an "Extreme Speed Injection" mode with injection times as fast as 1 second and includes cooling to ensure sample stability; the system offers a wide flow range (0.0001 – 5.0000 mL/min) and withstands pressures up to 130 MPa, meeting diverse method development needs.

The MS²Vertical 9020 triple quadrupole mass spectrometer delivers reliable and versatile performance for demanding analyses. It features a curved collision cell that effectively eliminates memory effect and cross-contamination, ensuring data integrity during high-throughput runs. The system is equipped with a high-precision, thermally stable quadrupole mass analyzer covering a broad mass range (m/z 5-3000), enabling the detection of high-mass organic compounds. Additionally, its ESI/APCI ion source supports temperatures up to 750°C, providing flexibility to meet diverse analytical requirements.

Performance

Ion source: heated auxiliary gas design, enabling temperature ramp-up to 650°C+ within 30 seconds; flow rate range 1 μL/min ‒ 3 mL/min, with no splitting required; plug-and-play design, allowing replacement without additional tools or venting; integrated exhaust trap assembly, preventing gas backﬂow in the sealed ion source enclosure.

Ion transport: cone design eﬀectively prevents sample decomposition caused by thermal fragmentation and clogging caused by condensation; pre-quadrupole as an ion focusing guide device provides high contamination resistance; the ion source interface employs backﬂush technique and a removable skimmer cone.

Quality analyzer: cylindrical quadrupoles manufactured from high-purity molybdenum with gold-plated surfaces, ensuring exceptional mass axis stability; pre-ion guide design eﬀectively eliminates fringe ﬁeld eﬀects, enabling superior ion focusing and anti-contamination functions; curved collision cell design eﬃciently eliminates memory eﬀects and cross-contamination.

Vacuum system: turbomolecular pump with reliable vacuum-seal interface, enabling high-stability multi-stage gradient vacuum; ion source removable under vacuum, ensuring long-term robustness and experimental eﬃciency; automatic power-oﬀ protection, with no additional water cooling required.
