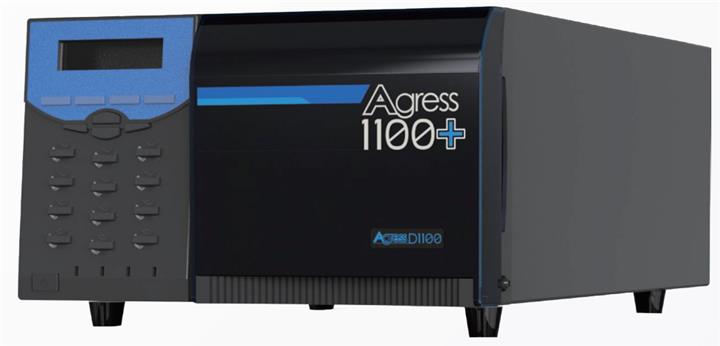

D1100+ UV-Vis Detector

The D1100+ UV-Visible Detector features an optimized optical path heat dissipation structure that maintains stable temperature, significantly reducing baseline noise and drift for long-term reliability. It supports automatic spectrum scanning, enabling full-wavelength UV-Vis absorption scans under static mobile phase conditions to quickly determine the optimal detection wavelength. The wavelength-time program allows automatic wavelength switching at preset times during a single analysis, ensuring multiple components are detected at their best wavelengths and greatly improving sensitivity. A convenient side-mounted solvent flow outlet simplifies waste solvent discharge. These features make the D1100+ a high-performance, user-friendly detector for HPLC systems.

Operation_Manual_for_D1100plus_UV-visible_Detector.pdf

Specifications

Wavelength Range: 190 nm – 700 nm

Light Source: Deuterium lamp

Display: 2×16 LCD

Wavelength Accuracy: ±1 nm

Flow Cell Pressure Resistance: ≤ 8 MPa

Communication Interfaces: RS232, USB

Dimensions (W×D×H): 420 mm × 260 mm × 160 mm

Weight: 14 kg

Power Supply: AC 220 V, 50 Hz

Power Consumption: 100 W

Performance

The D1100+ UV-Visible Detector is designed for high-performance liquid chromatography (HPLC) and operates in three modes: single wavelength, wavelength-time program, and spectrum scanning. It provides high-sensitivity detection with ultra-low noise and drift, ensuring stable baselines and reliable quantitative analysis. The detector can be controlled via the W1100 chromatography workstation, and its RS485 communication capability enables seamless integration into multi-module HPLC systems. It is ideal for pharmaceutical, chemical, and biological applications requiring precise UV detection.
