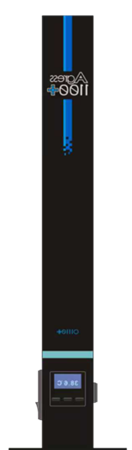

The O1100+ Series Column Oven incorporates imported temperature controllers and sensors for highly precise and stable temperature regulation. Advanced membrane heating technology significantly extends the heater’s service life. The O1110+ features forced-air circulation, which shortens heating time and substantially reduces temperature gradients, while the enlarged chamber accommodates two 10 mm × 300 mm columns. The O1120+ adds RS485 communication, enabling remote control and monitoring via chromatography workstations. An integrated one‑piece structure ensures convenient operation and installation.
| Parameter | O1110+ | O1120+ |
| Temperature Range | Ambient +5 °C – 99 °C | Ambient +5 °C – 99 °C |
| Setting Precision | 0.1 °C | 0.1 °C |
| Temperature Accuracy | ≤ ±0.5 °C | ≤ ±0.5 °C |
| Temperature Stability | ≤ 0.2 °C | ≤ 0.2 °C |
| Dimensions (L×W×H) | 120 mm × 65 mm × 570 mm | 120 mm × 65 mm × 570 mm |
| Weight | 4.2 kg | 4.2 kg |
| Power Supply | AC 220 V ± 10%, 50 Hz | AC 220 V ± 10%, 50 Hz |
| Power Consumption | 110 W | 110 W |
| Fuse Rating | T1.25A / 250 V | T1.25A / 250 V |
| Communication | None | RS485 |
| Forced‑Air Circulation | Yes | Yes |
| Max. Column Capacity | 2 × 10 mm × 300 mm | 2 × 10 mm × 300 mm |
The O1100+ Series Column Oven delivers accurate and stable temperature control for HPLC columns from 5 °C above ambient up to 99 °C, ensuring reproducible retention times, high column efficiency, and consistent analytical results. The forced-air circulation in both models eliminates thermal gradients and accelerates temperature equilibration, while the O1120+ enables remote method programming and real‑time monitoring via RS485 communication. With its compact footprint, low power consumption, and robust construction, the O1100+ series is an ideal solution for pharmaceutical, biomedical, environmental, and quality control laboratories requiring reliable column temperature management.
