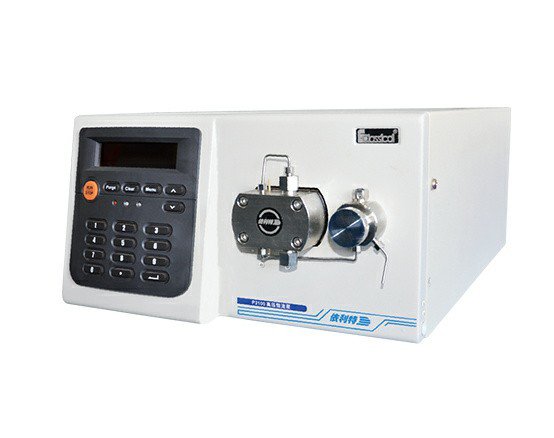

The P3100 series high-pressure constant-flow pumps are distinguished by their exceptional stability and durability. Featuring a low-pulsation design, they ensure smooth and reliable infusion processes. Through optimized flow subdivision control technology, the pumps significantly enhance accuracy and repeatability at low flow rates. The pump body integrates PID segmented control with temperature calibration curves, ensuring consistent system performance across a wide operating range. Additionally, the selection of high-quality critical components provides a solid foundation for long-term stable operation of the equipment.
Flow range: 0.001 to 10.000 mL/min.
Maximum operating pressure: 45 MPa.
Power supply: AC220V ±10%,50Hz / 80W.
Dimensions (L×W×H): 420 mm × 300 mm × 175 mm.
System configuration: Can serve as the core infusion unit for single, dual, or quadruple (P3130 model) liquid chromatography systems.
Key design features: low-pulsation infusion, optimized flow rate subdivision control, PID segmentation and temperature calibration technology.
The P3100 series high-pressure constant-flow pumps serve as the reliable power core of the EClassical 3100 high-performance liquid chromatography (HPLC) system, delivering high-precision and stable mobile phase delivery for routine analysis, quality control, and method development. With their excellent low-pulsation performance and wide flow range, these pumps ensure outstanding reproducibility from isocratic to gradient analysis. They are particularly suitable for daily testing and trace analysis in pharmaceutical, chemical, food, and scientific research fields, making them an ideal choice for building cost-effective and highly reliable HPLC solutions.
