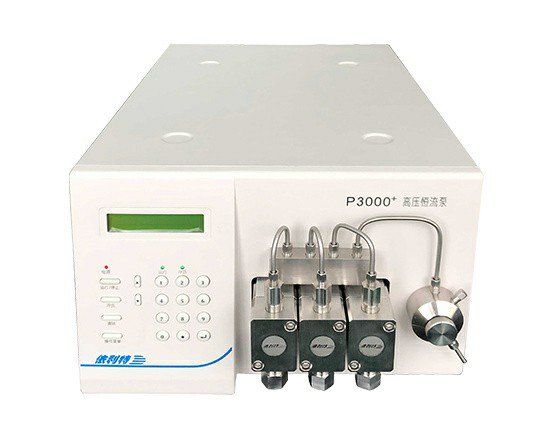

The P3000+ High-Pressure Constant-Flow Pump integrates multiple advanced designs and functionalities to ensure stable, precise, and safe operation under high flow rates and high pressure conditions. Its core features include: an efficient three-plunger parallel reciprocating pump structure that significantly reduces infusion pulsation and ensures flow rate stability; a high-power AC servo motor for smooth and accurate operation, effectively enhancing the reproducibility of preparation results at high flow rates and the stability of the gradient system; dual correction capabilities for mobile phase compression coefficient and flow rate accuracy, enabling intelligent flow compensation within ±15% to ensure extremely high flow rate precision; support for external full reverse control via RS485 interface from a chromatography workstation, facilitating the easy construction of high-precision binary high-pressure gradient systems and flow rate gradient programming to meet complex sample preparation requirements; equipped with real-time pressure monitoring, high/low pressure limit alarms, and a dual protection mechanism with mechanical safety valves, which automatically trigger protection when system pressure exceeds set values or internal temperature becomes excessively high (e.g., 85°C), fully ensuring the safety of both the instrument and operators.
Flow rate range: 1-3000 mL/min (set increment: 1 mL/min)
Maximum working pressure: 10 MPa at 0-2000 mL/min; 7 MPa at 2001-3000 mL/min
Pump seal integrity: Maintain at 10 MPa for 10 minutes with pressure drop ≤ 1.5 MPa
Operating environment: Temperature 0-40°C, humidity ≤ 80%
Power supply: AC 220V ±10%,50/60 Hz
Power consumption: 800 W
Dimensions: 600 mm (length) × 350 mm (width) × 230 mm (height)
The P3000+ High-Pressure Constant-Flow Pump is a high-performance core infusion device specifically designed for advanced preparation and semi-preparation applications in high-performance liquid chromatography (HPLC). It delivers extremely stable and precise high-pressure constant-flow output, making it an ideal choice for constructing complex isocratic or binary high-pressure gradient chromatography systems. The pump supports comprehensive computer-controlled operation via chromatography workstations, enabling precise execution of mobile phase composition gradients and flow rate-time programs, thereby perfectly addressing the challenges of separation and purification of complex samples in fields such as chemical engineering, pharmaceuticals, and biochemistry. Its robust adaptive flow correction function, comprehensive real-time system status monitoring, and multi-linked safety protection design collectively ensure outstanding reliability under long-term, high-load operation, high reproducibility of results, and safety throughout the entire operational process.
