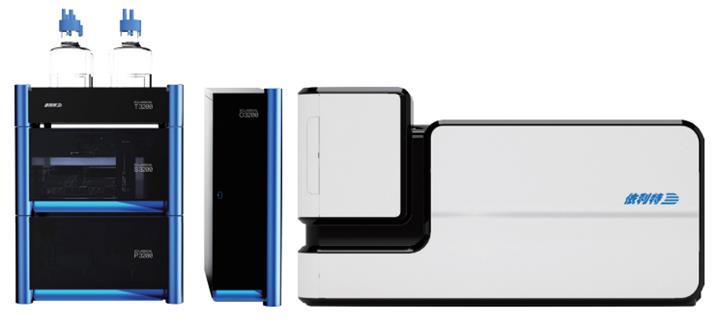

The EClassical 3200L UHPLC system was coupled with the MS2 Vertical 9010 triple quadrupole mass spectrometer in the Elite MS2 Vertical 9010 LC-MS/MS system. This configuration fully leverages the advantages of the EClassical 3200L HPLC system, including its intelligent design, ultra-high performance, "rapid injection," and long-term stable and precise operation. Simultaneously, it integrates high sensitivity, high stability and high cost-effectiveness, with the advantages of strong quantitative ability and multiple reaction modes of Elite MS2 Vertical 9010. This combination achieves rapid, sensitive, convenient, and stable long-term LC-MS/MS testing and operation. The system can be widely used in the fields of medical research, biopharmaceuticals, food safety and environmental testing, and new materials and chemical product development.
Liquid Chromatography Section (EClassical 3200L) ensures excellent separation and injection performance: the column oven provides temperature control with an accuracy of 0.1°C and supports multiple temperature control modes; the autosampler features an "Extreme Speed Injection" mode with injection times as fast as 1 second and includes cooling to ensure sample stability; the system offers a wide flow range (0.0001 – 5.0000 mL/min) and withstands pressures up to 130 MPa, meeting diverse method development needs.
The MS2Vertical 9010 triple quadrupole mass spectrometer delivers superior quantitative performance and versatility for demanding analytical applications. It features a broad detection range (19–2800 Da) and utilizes a rare-metal quadrupole system for exceptional mass-axis stability. With high sensitivity and multiple scanning modes, it enables high-throughput analysis across diverse sample types. The instrument is equipped with an independently heated ESI/APCI dual ion source, offering flexibility for various ionization techniques. User-friendly, customizable software simplifies operation and method development. Additionally, flexible customization services are available to provide complete, tailored LC-MS/MS solutions.
Ion Source System: Heats to ≥650°C in 30 seconds and supports flow rates from 1 µL/min to 3 mL/min without sensitivity loss. Its plug-and-play design enables tool-free replacement without breaking vacuum, and an exhaust vent prevents backflow.(Image-92)
Ion Transport Systems: A conical design prevents clogging from thermal decomposition. A pre-quadrupole guides and focuses ions with high contamination resistance, featuring blowback technology and a removable purge stop cone. (Image-93)
Quality Analysis System: Gold-plated, high-purity molybdenum quadrupoles ensure excellent mass-axis stability. Pre-filter poles minimize fringe-field effects and enhance focusing. A proprietary collision cell eliminates memory effect and cross-contamination for long service life. (Image-94)
Vacuum System: A multi-stage gradient vacuum using turbomolecular pumps and precision sealing ensures stability. The ion source is removable under vacuum, requires no water cooling, and includes auto power-off protection.
