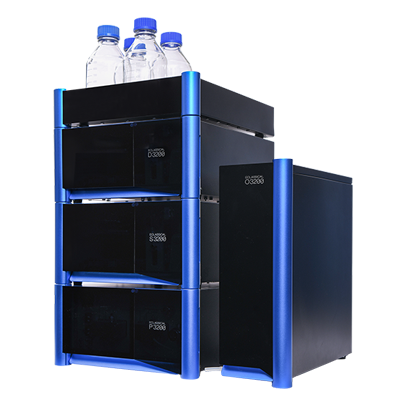

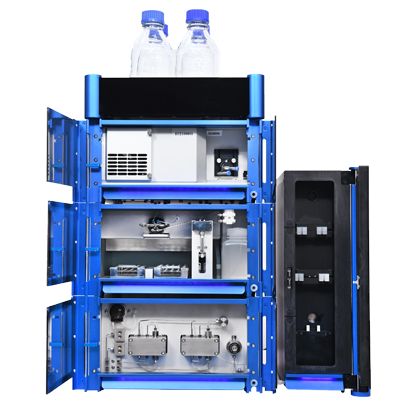

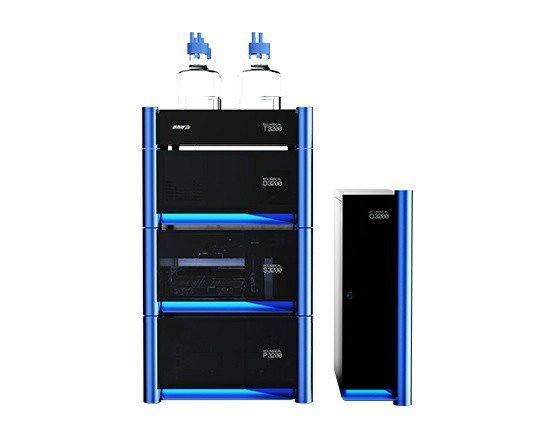

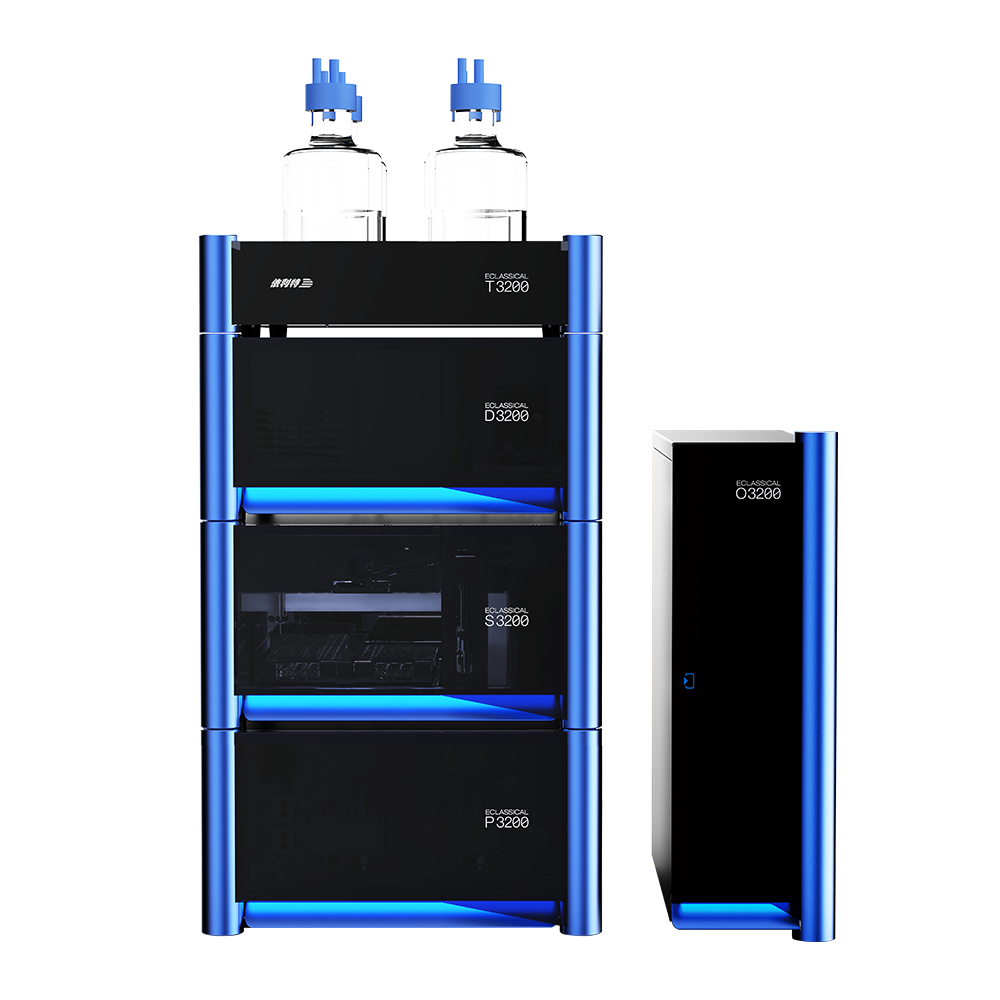

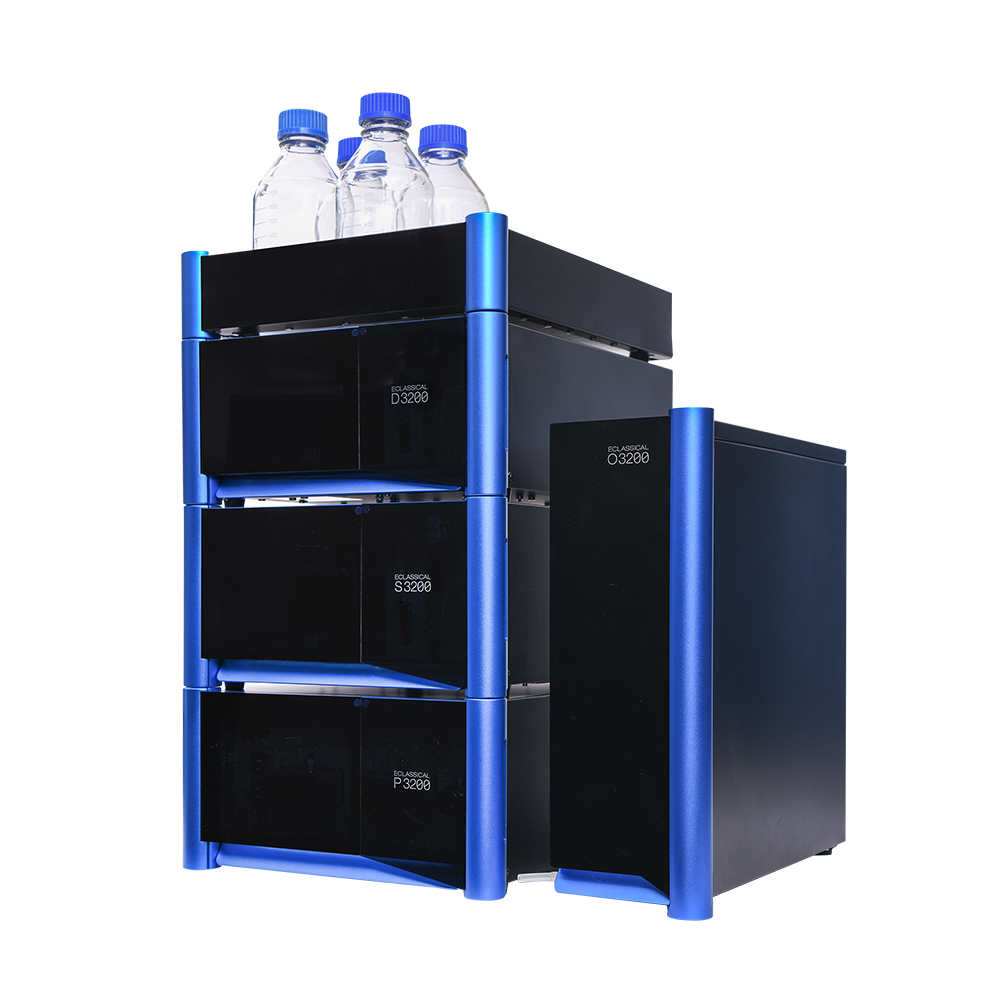

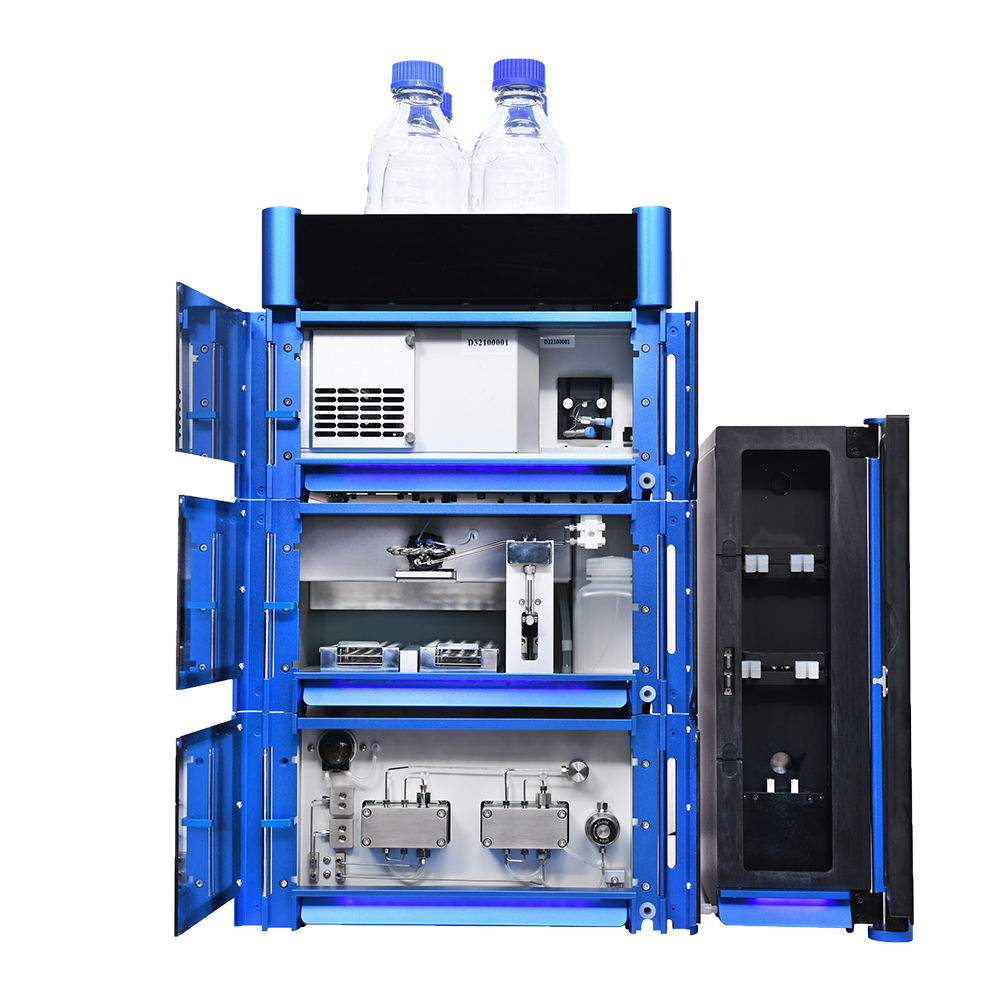

The Elite EClassical 3200L Ultra-High Performance Liquid Chromatography (UHPLC) system integrates cutting-edge engineering to deliver reliable, high-throughput performance for demanding laboratories.
Ultra-High Pressure & Precision: Driven by a 130 MPa solvent delivery system with intelligent flow control, it enables fast separations while maintaining exceptional reproducibility.
Intelligent Temperature Management: A precisely controlled column oven (±0.1°C) ensures optimal separation conditions and consistent retention times.

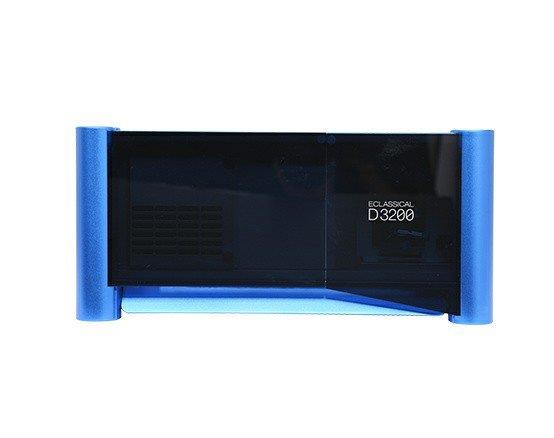

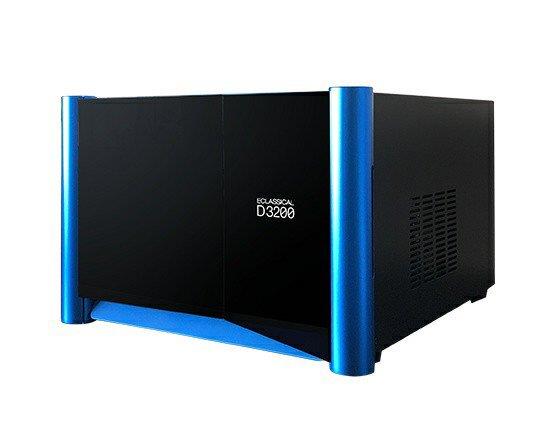

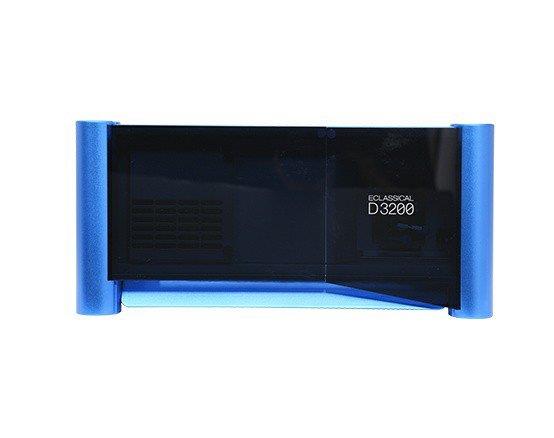

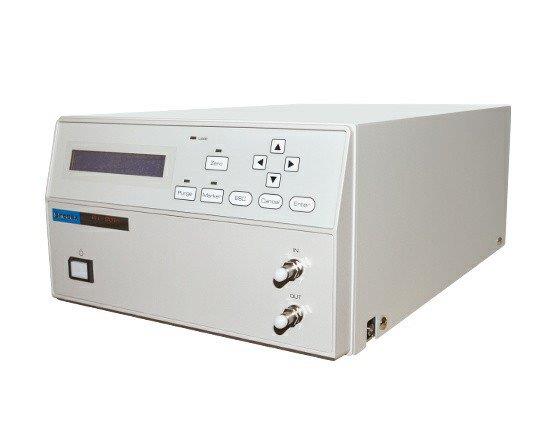

Flexible Detection: The platform supports a wide range of detectors—including UV-Vis, DAD, ELSD, RID, and fluorescence—facilitating multi-analyte analysis in a single run.
Compliant Design: Its fully modular architecture, coupled with compliant data workstation options, seamlessly supports adherence to GMP/GLP regulatory standards.
Workflow Efficiency: From automated injection and precise temperature control to versatile detection and data integrity, the 3200L provides a streamlined, robust solution for complex analyses in pharmaceuticals, biotechnology, and research.
Flow range: 0.0001 ~ 5.0000 mL/min
Maximum working pressure: 130 MPa
Injection volume range: 0 - 100 μL
Injection speed: supports "Extreme Speed Injection" mode, with the fastest injection time achievable in 1 second.
Autosampler temp. control: heating, cooling and intelligent mode.
Column oven temp. precision: 0.1℃
Elite's UHPLC system integrates a 130 MPa ultra-high-pressure infusion system with intelligent temperature control. It supports 1-second ultra-fast injection and multi-detector coupling. The patented optical system ensures detection accuracy, while the fully modular design meets GMP/GLP compliance requirements, providing an efficient and stable integrated solution for complex sample analysis in fields such as pharmaceutical R&D and life sciences.

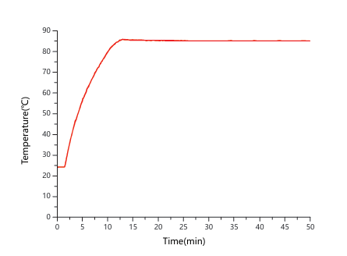

The column temperature chamber employs a Peltier temperature control element coupled with a circulating air system, ensuring precise temperature regulation and rapid heating. At room temperature, it takes only 12 minutes to reach 85°C and maintain stable temperatures. During cooling, the temperature can be reduced from 35°C to 5°C in less than 10 minutes.

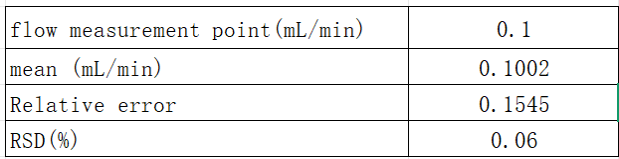

Improved stability: Excellent accuracy and stability are maintained even at low flow rates, 0.1 mL/min. Using deionized water as the mobile phase, 11 consecutive sets of values were recorded at a flow rate of 0.1 mL/min with a digital flow meter, and the mean value and RSD value were calculated.

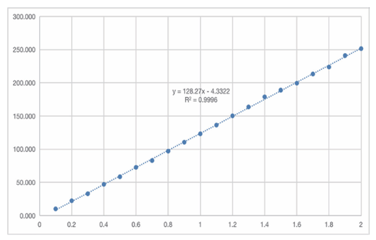

Enhanced accuracy: Maintains exceptional precision even with microvolume injections, 0.1-2 μL. Continuous injections within the 0.1-2 μL range yield excellent linearity, with correlation coefficients (r) exceeding 0.999. Microvolume injections of varying volumes demonstrate outstanding accuracy.

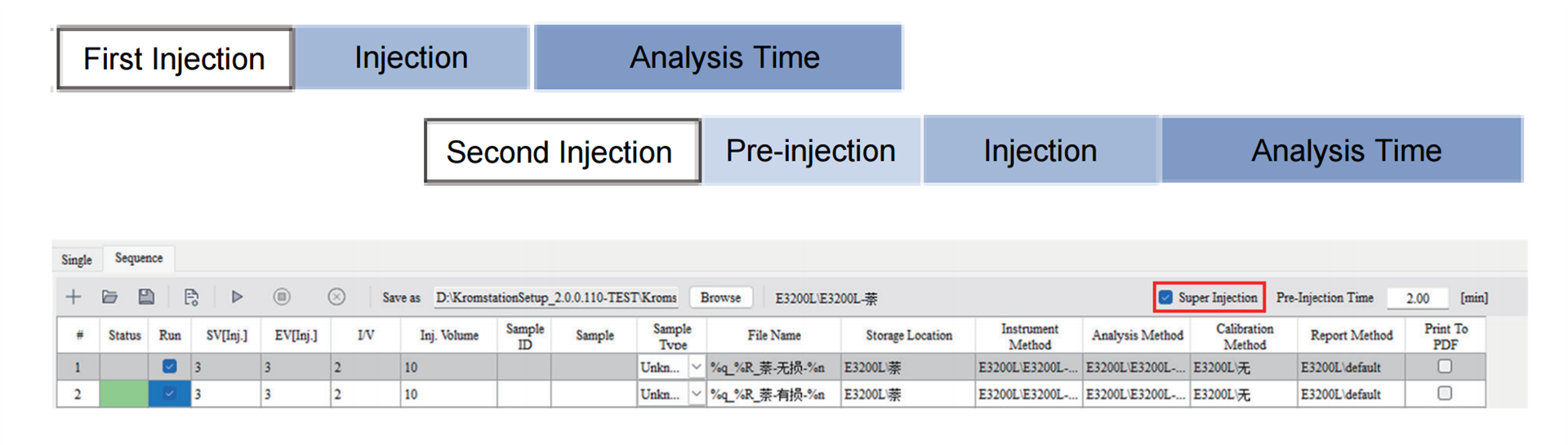

The "Ultra-Rapid Injection Mode" of the EClassical3200L UHPLC enables the shortest injection time to be reduced to 1 second through pre-injection settings.
