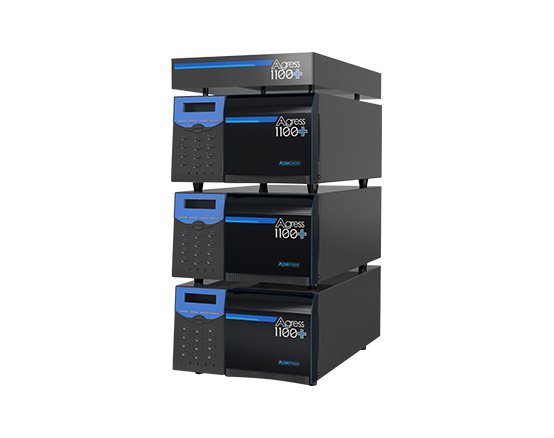

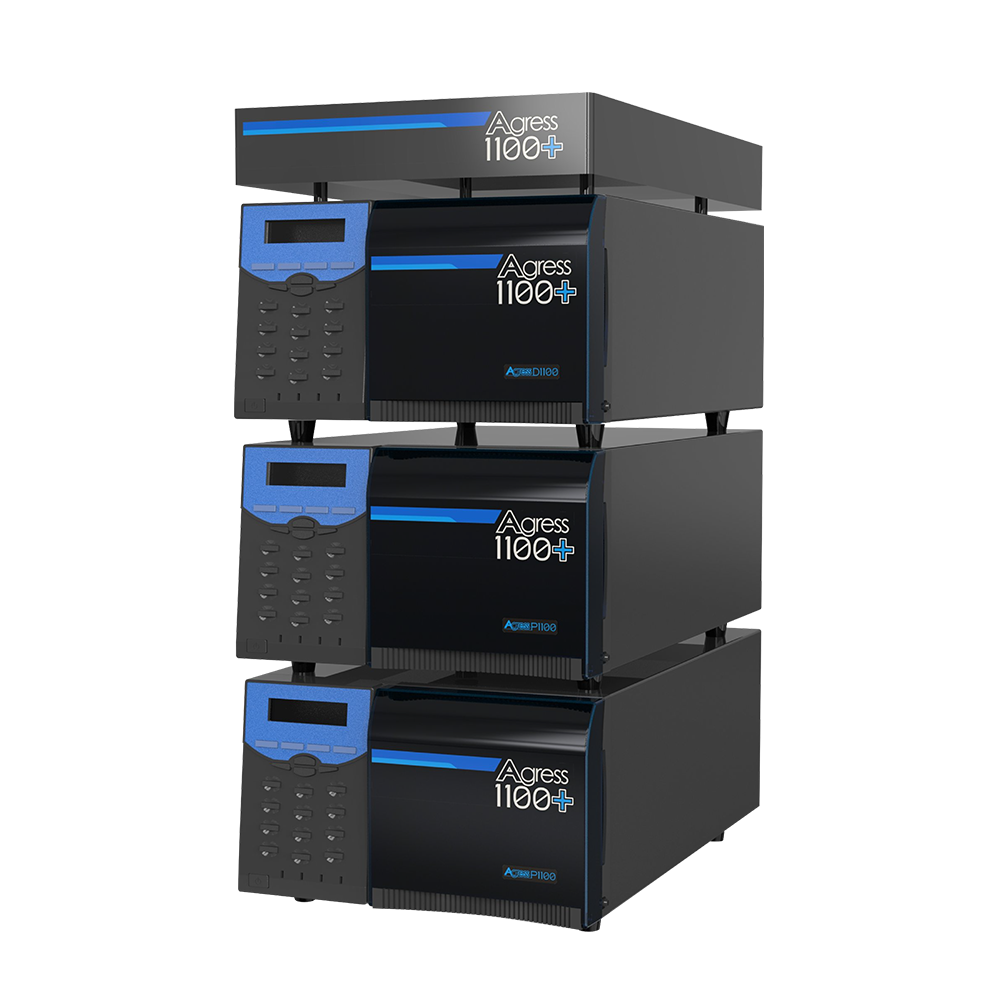

Agress 1100+ HPLC

Compatible with both normal-phase and reversed-phase solvents, suitable for use in GPC systems, and supports solvent exchange.

An optimized, high-efficiency heat dissipation structure ensures stable system operation under demanding condition.

The fully upgraded sealing design minimizes system performance degradation and consistently delivers accurate test results.

The front panel is coated with a corrosion-resistant finish, enhancing the product's durability against a wide range of solvents.

Compatible with Kromstation chromatography workstations, compliant with data integrity regulations.

Compact in size, easy to place, and space-saving.

1772076770884_1.pdf

Specifications

  • Flow range: 0.001~10.000 mL/min
  • Maximum working pressure: 42 MPa
  • UV-vis dector wavelength range: 190 nm ~ 700 nm
  • Columns oven temp. range: room temp.+5℃ ~ 99℃
  • Column oven temperature precision: 0.1℃

Performance

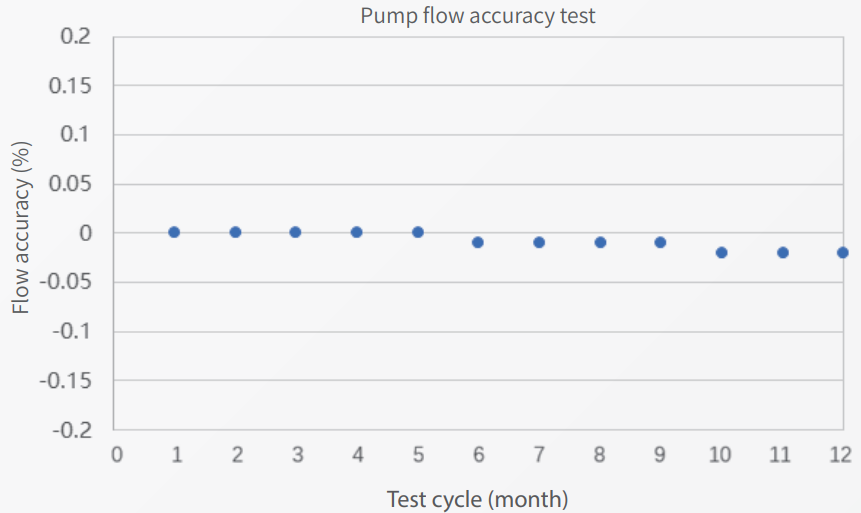

Pump flow accuracy: during the 12-month test period, the flow accuracy of the P1100+ high-pressure constant-flow pump ranged from -0.02% to 0, demonstrating the pump's excellent flow stability, which ensures the reliability of the test results.

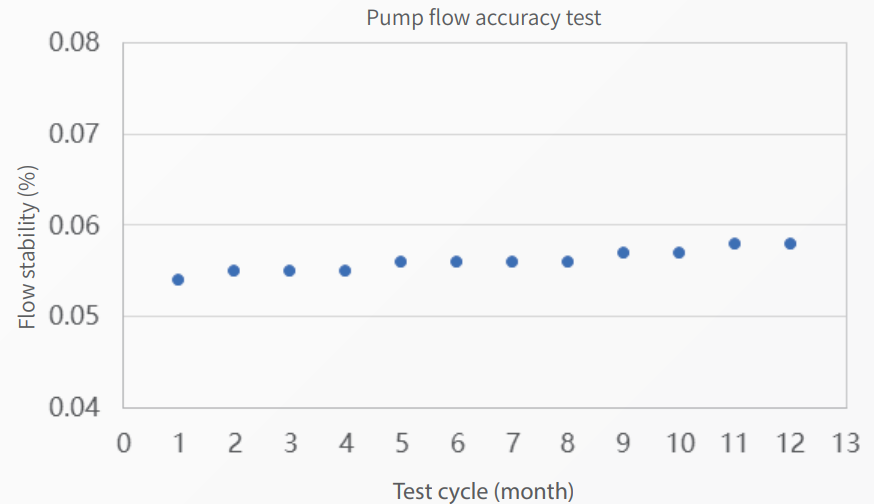

Pump flow stability: during the 12-month test period, the flow stability of the P1100+ high-pressure constant-flow pump ranged from 0.054% to 0.058%, demonstrating the pump's excellent stability, which ensures the reproducibility of the test results.

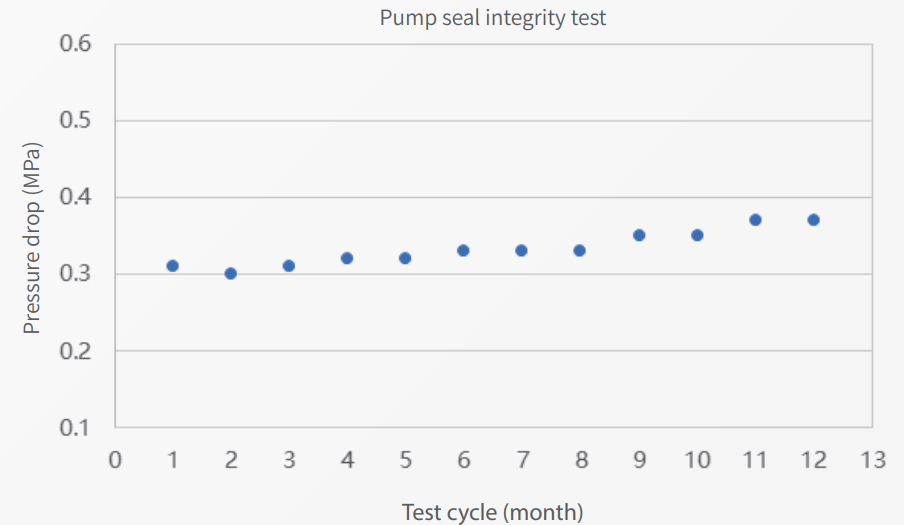

Pump seal integrity: during the 12-month test period, the pressure drop of the P1100+ high-pressure constant-flow pump ranged from 0.31 MPa to 0.37 MPa, demonstrating the pump's high quality, which ensures durability and reliability over prolonged operation.

Components

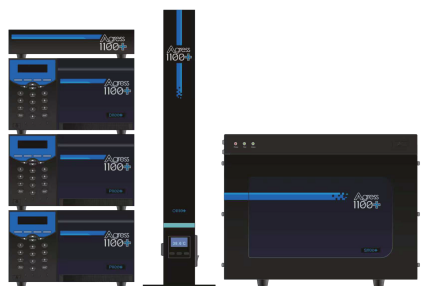

Elite Agress 1100+ HPLC system offers the following components, which can be selected according to your needs:

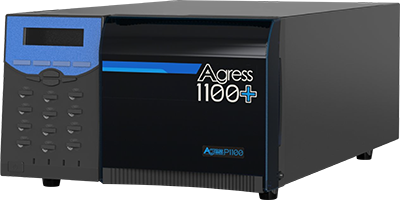

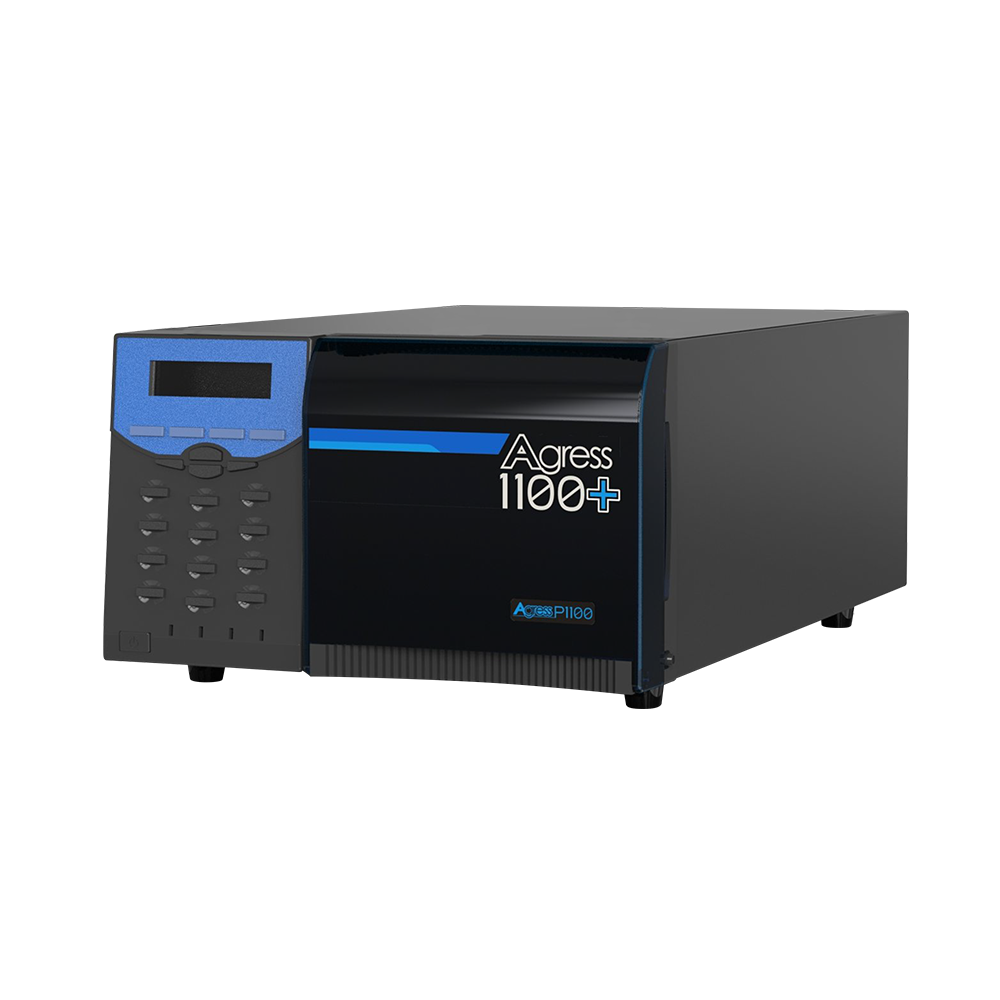

P1100+ High Pressure Constant Flow Pump
P1100+ High Pressure Constant Flow Pump
D1100+ UV-Vis Detector
D1100+ UV-Vis Detector

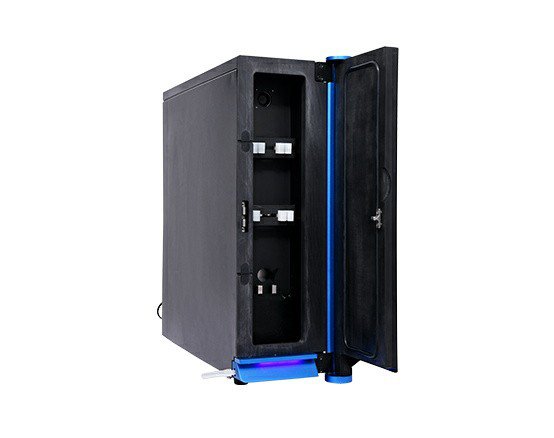

O1100+ Series Column Oven
O1100+ Series Column Oven
Kromstation Chromatography Data Workstation
Kromstation Chromatography Data Workstation
