Supersil NH2/NH2-S

Supersil Series HPLC Columns were developed by Elite HPLC with decades of expertise. Designed for higher separation efficiency, extended service life, and minimal batch-to-batch variation.

Built on ultra-pure porous spherical silica (purity >99.999%), Supersil delivers excellent mechanical strength, uniform pore size and particle distribution, and outstanding batch-to-batch reproducibility.

  • Uniquely engineered surface treatment ensures superior uniformity of silica gel.
  • Exceptionally low metal ion content.
  • Advanced end-capping technology significantly reduces residual silanol groups.

Supersil NH2/NH2-S

  • Ultra-pure porous spherical silica gel, bonded with amino propyl.
  • Compatible with normal phase, reversed phase, and weak anion exchange.
  • Can analyze strong polar compounds under normal phase conditions.
  • NH2-S is a reversed-phase solvent retention column, no need to switch, directly used for reversed-phase conditions, for analyzing sugars, etc.

Supersil Packing Parameters

Supersil NH2/NH2-S
Stationary PhaseParticle Size (μm)Specific Surface Area (m2/g)Pore Size (Å)Carbon Content (C%)End-capping
Supersil NH2/NH2-S5320120-Y

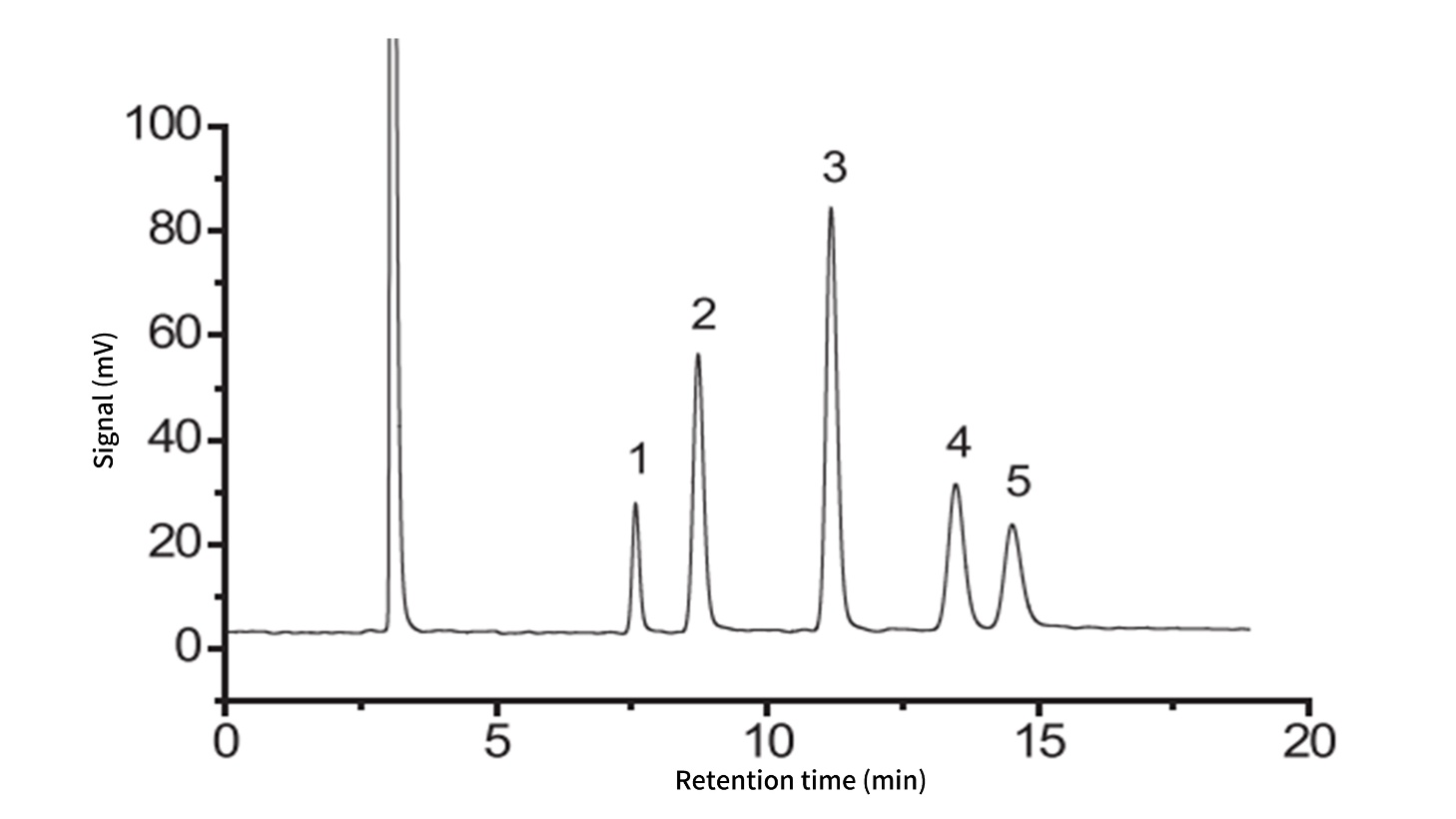

Application


1.Fructose; 2. Glucose; 3. Sucrose; 4. Maltose; 5. Lactose

Carbohydrate Analysis

  • Column: Supersil NH2-S 5μm 4.6×250mm
  • Mobile phase A: Acetonitrile
  • Mobile phase B: Water
  • A: B = 70:30 (V:V)
  • Flow rate: 1.0 mL/min
  • Detection: Refractive Index Detector
  • Column temperature: 35℃

How It Works

Compatible with normal phase, reversed phase and weak anion exchange. Normal phase conditions are used for analyzing highly polar compounds. NH2-S is a reversed-phase solvent retention column. There is no need for switching; it can be directly used for reversed-phase conditions for analyzing sugars, etc.

Ordering Information

Stationary PhaseParticle Size (μm)Size (mm)P/N
Supersil NH254.6×15031113074-C
54.6×20031113075-C
54.6×25031113076-C
54.6×30031113077-C
Supersil NH2-S54.6×15031113090-C
54.6×20031113091-C
54.6×25031113092-C
54.6×30031113093-C

*If you need guard or prep-columns, for column specifications not mentioned, please contact us for further information.

For guard columns, SPE columns, and laboratory general consumables, please feel free to contact us.
