Supersil Gold SAX

Supersil GOLD packings based on silica gel with a particle size of 3μm, 5μm and 10μm and a pore size of 120Å. The quality control standards of the production process are very strict.

Classic ultra-pure silicone matrix.
The analysis is highly efficient and has relatively wide applicability and standardization.
Supersil GOLD chromatographic columns have been used in thousands of laboratories around the world, and they are highly reliable.

Supersil Gold SAX

Classic ultra-pure silica matrix, bonded with quaternary amines, with uniform pore size and particle size distribution, and excellent batch-to-batch stability.
Extremely low metal ion content, multiple tailing techniques, with extremely low residual silanol groups, ensuring stability and excellent peak shape.
Usually applicable to compounds containing active groups such as -NH2, -NHR, -NR2, -N+R3X-.

Packing Parameters

StationaryPhase	Particle Size(μm)	Specific Surface Area(m²/g)	Pore Size(Å)	Carbon Content(C%)	End-capping
Supersil Gold SAX	5	170	120	2.5	Y

Application

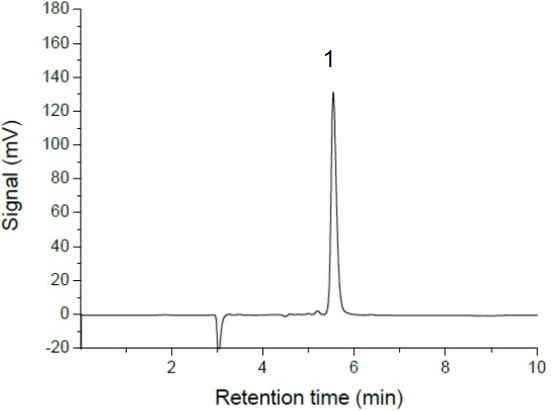

1、Glyphosate

Glyphosate

Column: Supersil Gold SAX 5µm 4.6×150mm
Mobile phase: Potassium dihydrogen phosphate aqueous solution / methanol = 97/3
Flow rate: 1.0 mL/min
Detection wavelength: 195 nm
Injection volume: 20 μL
Column temperature: 18 °C

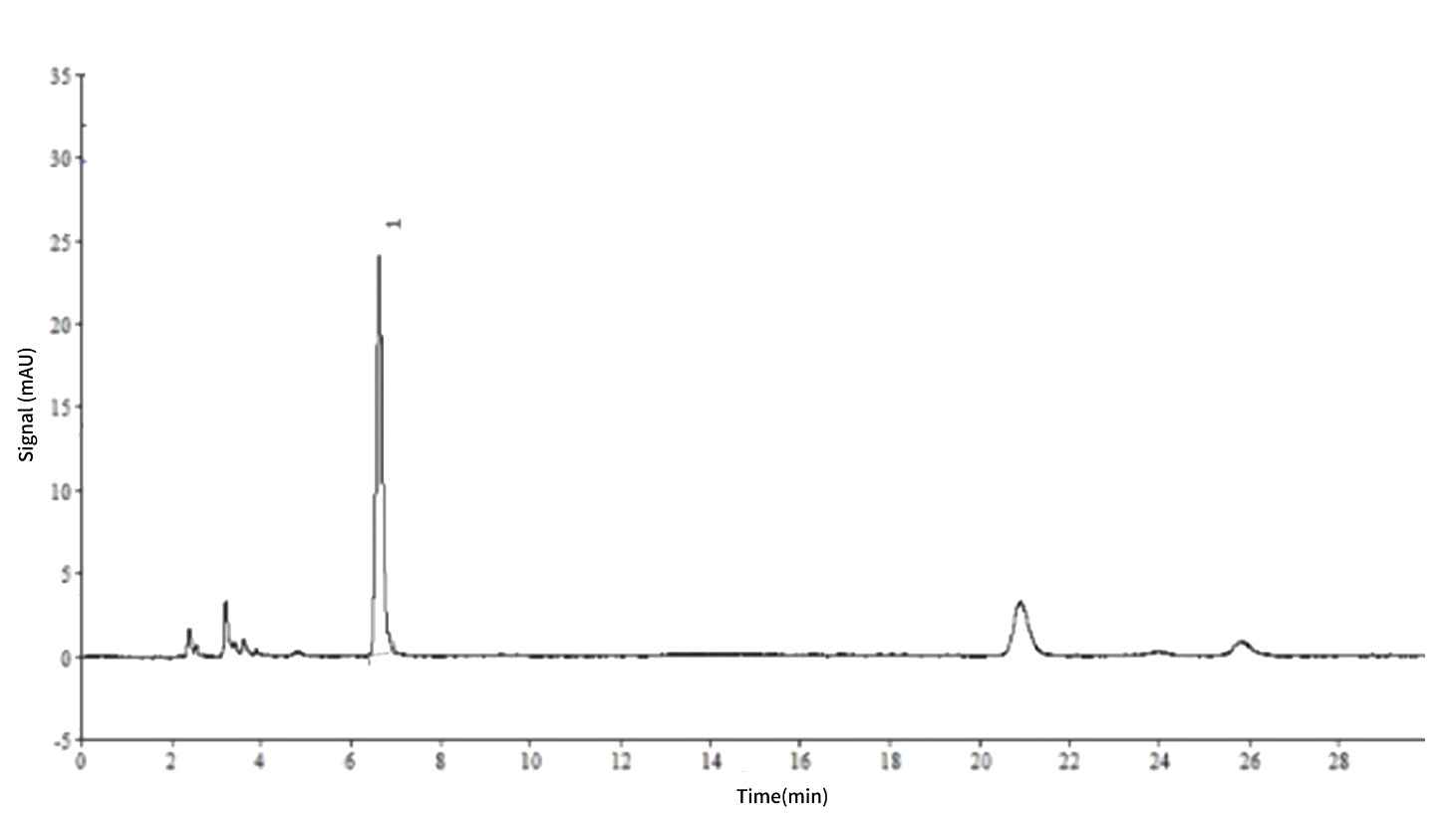

1、Glufosinate-ammonium

Glufosinate-ammonium

Column: Supersil Gold SAX 5µm 4.6×250mm
Mobile phase: 0.075 mol/L disodium hydrogen phosphate
Flow rate: 0.8 mL/min
Detection wavelength: 195 nm
Injection volume: 10 μL
Column temperature: Room temperature

Ordering Information

Stationary Phase	article Size (μm)	Size (mm)	P/N
Supersil Gold SAX	5	4.6×150	3111-n2555-051-C
	5	4.6×200	3111-n2555-061-C
	5	4.6×250	3111-n2555-071-C
	5	4.6×300	3111-n2555-081-C

*For column specifications not mentioned, please contact us for further information.
