Supersil Gold ODS

Supersil GOLD packings based on silica gel with a particle size of 3μm, 5μm and 10μm and a pore size of 120Å. The quality control standards of the production process are very strict.

Classic ultra-pure silicone matrix.
The analysis is highly efficient and has relatively wide applicability and standardization.
Supersil GOLD chromatographic columns have been used in thousands of laboratories around the world, and they are highly reliable.

Supersil Gold ODS

Classic ultra-pure silica gel matrix, bonded with octadecylsilane, featuring excellent stability and batch reproducibility.
High analytical efficiency, with wide versatility and standardization.
Low carbon loading, and compounds with weak polarity elute quickly.

Packing Parameters

Stationary Phase	Particle Size (μm)	Specific Surface Area (m²/g)	Pore Size (Å)	Carbon Content (C%)	End-capping
Supersil Gold ODS	5	170	120	10	Y

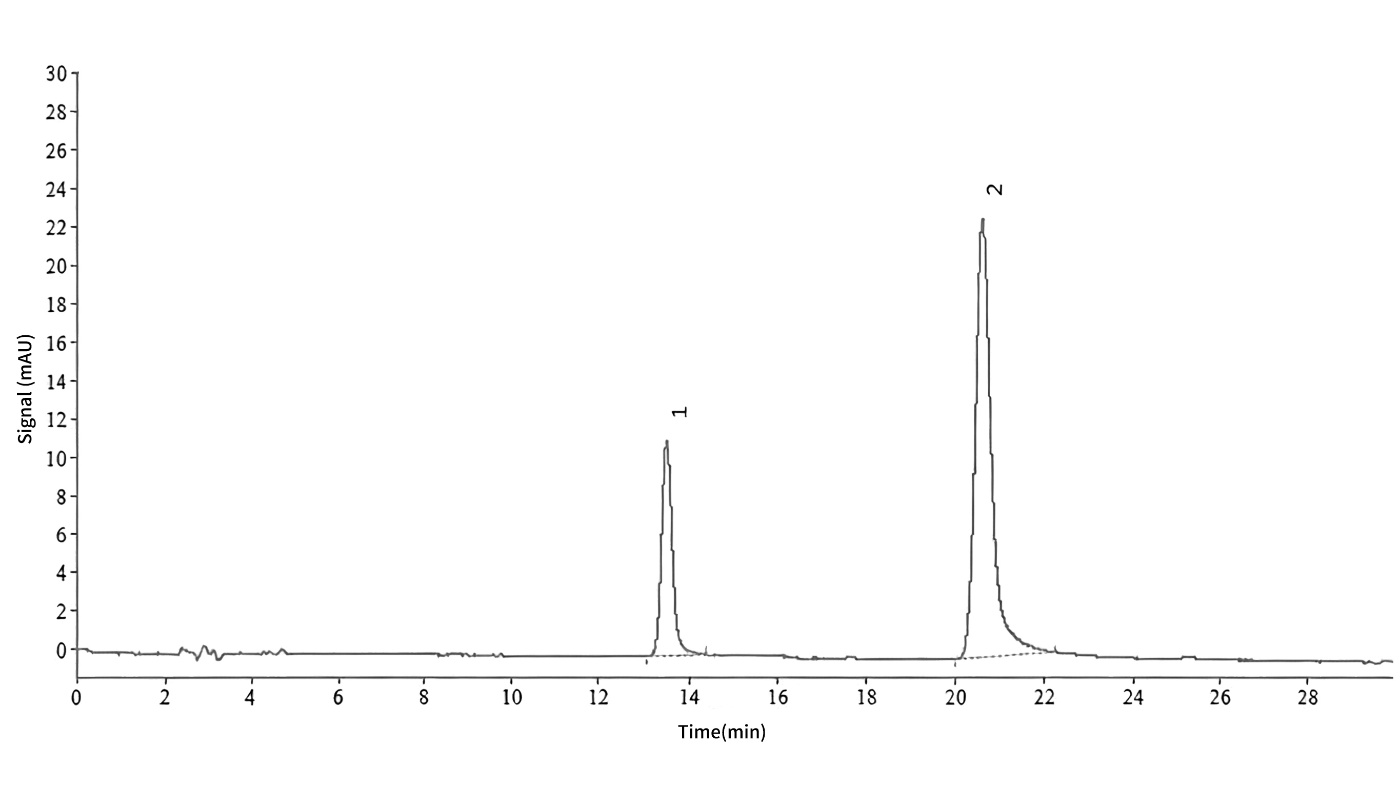

Application

1.Chrysophanol, 2. Emodin

wine-processed rhubarb

Column: Supersil Gold ODS 5µm 4.6×250mm
Mobile phase: Methanol-acetonitrile-0.1% phosphoric acid (23:42:35)
Flow rate: 1.0 mL/min
Detection wavelength: 254 nm
Injection volume: 10 μL
Column temperature: 30 ℃

Ordering Information

Stationary Phase	Particle Size (μm)	Size (mm)	P/N
Supersil Gold ODS	5	2.1×150	3111-n0255-251-C
	5	4.6×150	3111-n0255-051-C
	5	4.6×200	3111-n0255-061-C
	5	4.6×250	3111-n0255-071-C
	5	4.6×300	3111-n0255-081-C

*For column specifications not mentioned, please contact us for further information.
