SinoPak®BEH Series This hybrid silica packing combines the advantages of both organic and inorganic materials, delivering the high column efficiency, high mechanical strength, and stable retention characteristics of pure silica, alongside the broad pH stability and reduced acidic silanol activity of polymer-based packings. Even under extreme conditions, it maintains excellent column longevity.
The hybrid silica packing reduces surface silanol effects:
| Stationary Phase | Particle Size (μm) | Specific Surface Area (m2/g) | Pore Size (Å) | Carbon Content (C%) | End-capping |
|---|---|---|---|---|---|
| SinoPak BEH Phenyl-Hexyl | 5 | 180 | 130 | 15 | Y |

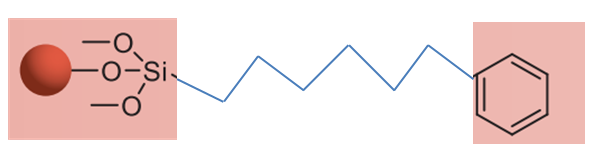

Phenyl-hexyl silane bonded ethylene bridge hybridized silica gel, with excellent chemical stability. Triple bonding, low loss of phenyl groups, double tailing technology, can obtain good peak shape. It offers selectivity distinct from that of straight-chain alkane chromatographic columns such as C18 or C8, making it suitable for the analysis of aromatic and amine compounds.
| Stationary Phase | Particle Size (μm) | Size (mm) | P/N |
|---|---|---|---|
| SinoPak BEH Phenyl-Hexyl | 5 | 4.6×100 | 3111-36a56-041-C |
| 5 | 4.6×150 | 3111-36a56-051-C | |
| 5 | 4.6×200 | 3111-36a56-061-C | |
| 5 | 4.6×250 | 3111-36a56-071-C |
*For column specifications not mentioned, please contact us for further information.
